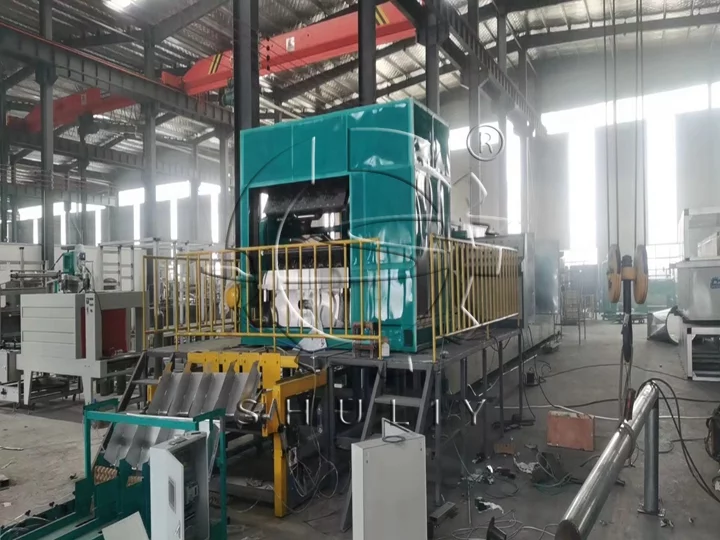

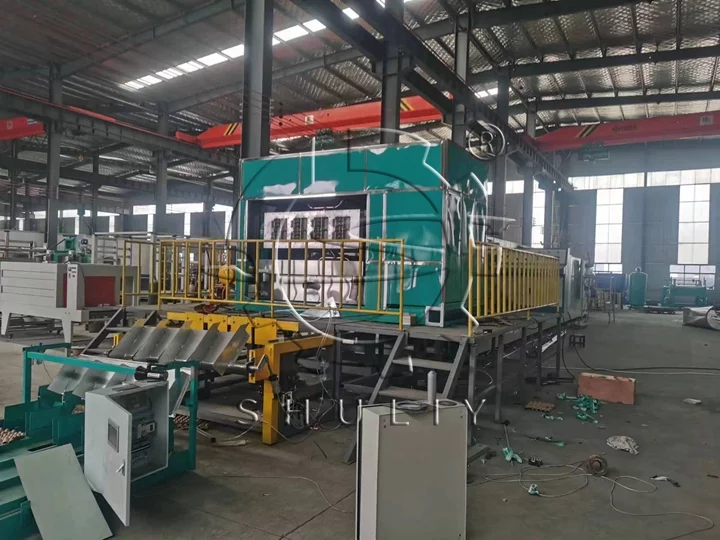

The shoe tray forming machine is a professional pulp molding equipment for producing eco-friendly shoe packaging inserts. It adopts vacuum adsorption molding technology to complete continuous mass production of pulp shoe supports, shoe bottom trays and box inner liners by taking waste paper as raw materials.
The finished pulp shoe trays are widely matched with sneakers, leather shoes, casual shoes and children’s shoes. As fully biodegradable substitutes for plastic and foam fillers, they perfectly meet global plastic restriction policies and eco-packaging standards for cross-border export.
Its hourly output ranges from 1,000pcs to 7,000pcs, with total power covering 38kW–120kW. The standard industrial voltage is 380V/50Hz, and the whole machine enjoys a 12-month warranty. We can adjust machine size and functional modules according to customers’ workshop space and production targets.
The shoe tray forming machine relies on negative-pressure vacuum molding technology: pulp is adsorbed onto mold surfaces via air pressure difference, then dewatered, demolded and dried to form fixed-shape pulp products. The whole production line includes 5 connected working stages:
Pulping: Waste paper, corrugated cartons and waste books are put into the pulper, mixed with water to make pulp with uniform concentration, then stored in pulp tanks for continuous feeding.
Vacuum Forming: Molds are immersed in pulp tanks. The vacuum pump generates negative pressure to evenly attach pulp to mold surfaces. The mold lifts up to drain redundant water.
Demolding: The air compressor provides compressed air, cooperating with mechanical ejection structures to separate wet pulp shoe blanks from molds completely.
Drying: Wet semi-finished products are sent to drying ovens or drying tunnels. Electric heating or hot air circulation removes residual moisture to harden and shape the shoe trays.
Trimming & Finishing: Burrs and extra edges are cut off after drying, then neat finished shoe trays are ready for packaging and storage.

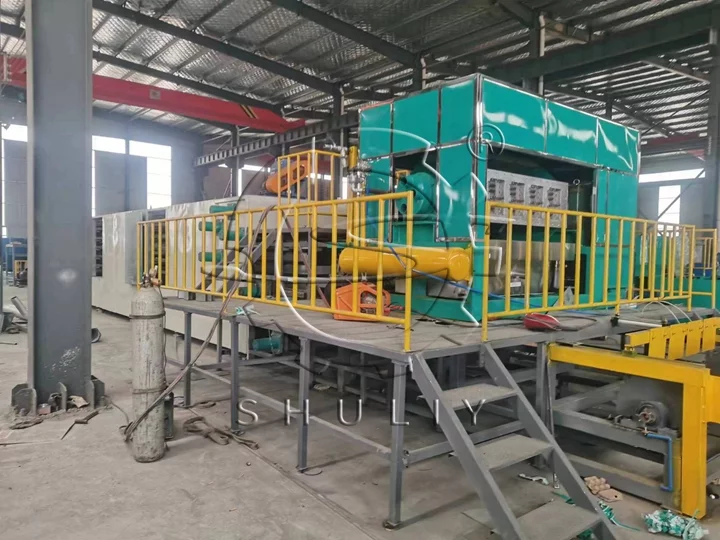

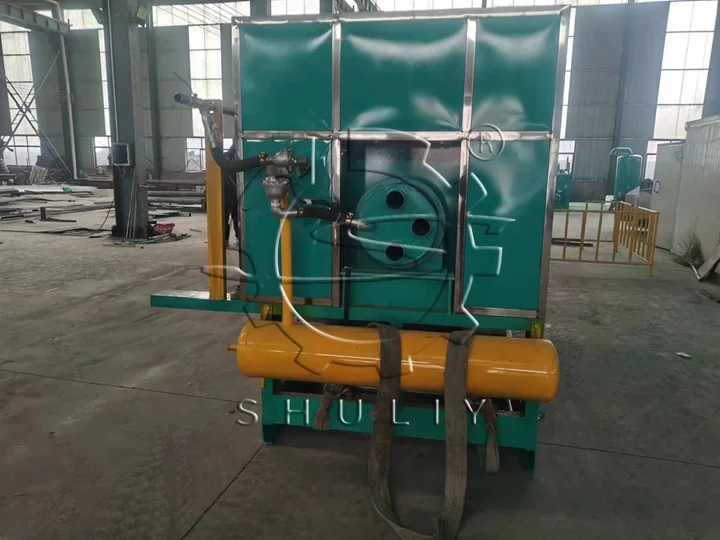

automatic shoe tray forming machine
SL Series Model Parameters & Selection Guide
The SL series has 7 standard models covering small workshops to large automated production lines. Key indicators include hourly output, total power, machine weight, pulp & water consumption and overall outer dimensions.
Low-output SL-1000: Suitable for newly built small packaging workshops, with small footprint and low power consumption.
Medium-output SL2500–SL4000: Standard configuration for most shoe factories, balancing production capacity and site cost.
High-output SL-7000: Designed for large packaging factories and export supporting plants, supporting full-automatic continuous multi-station production.
Model
Capacity (pcs/h)
Power (kw)
Overall Dimension (mm)
SL-1000-3X1
1000
38
2600*2200*1900
SL-1500-4X1
1500
38
2800*2200*1900
SL-2500-3X4
2500
55
2900*1800*1800
SL-3000-4X4
3000
60
3250*1800*1800
SL-4000-4X8
4000
95
3250*2300*2500
SL-5000-5X8
5000
95
3700*2300*2500
SL-7000-6X8
7000
120
3200*2300*2500
Shoe tray forming machine parameters

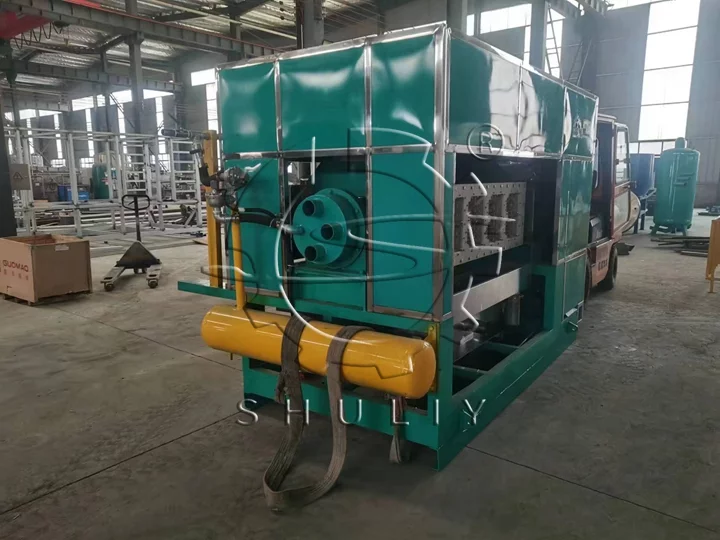

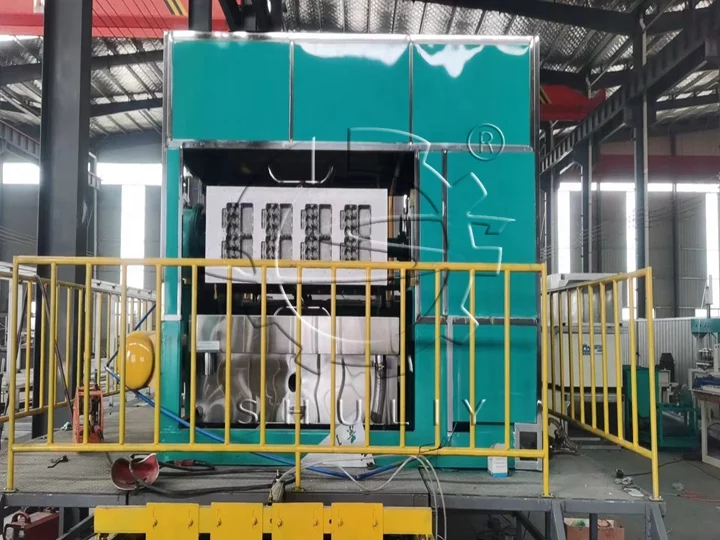

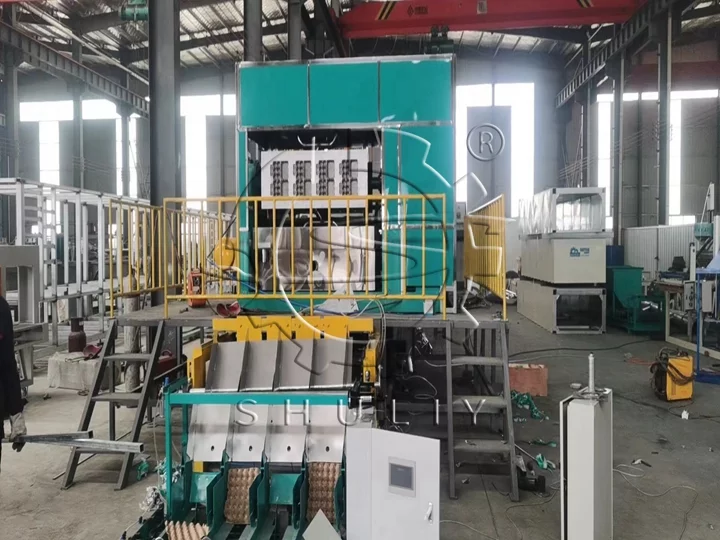

shoe packaging tray machinecommercial shoe tray making machine
All models support modular function adjustment. Customers can remove drying units or upgrade multi-station forming structures on demand.
Core Competitive Advantages of Shoe Tray Forming Machine
Eco-friendly & Export Eligible. Raw materials are 100% recycled waste paper, and finished trays degrade completely without white pollution. It complies with environmental packaging access standards of EU, US and Southeast Asian markets, helping exporters avoid plastic restriction trade barriers.
Highly Customizable for All Footwear Styles. We develop exclusive molds based on men’s shoes, women’s shoes, kids’ shoes and boots. The machine can produce single shoe supports, paired bottom trays and box inserts. Brand logos and concave-convex textures can be engraved on mold surfaces to highlight brand features.
Lower Comprehensive Production Cost. Waste paper is low-cost raw material. Stackable pulp shoe trays greatly save warehouse and transportation expenses. Their buffer performance effectively reduces surface abrasion of shoes during transit.
Flexible Output & Graded Automation. Production capacity ranges from 1,000 to 7,000 pieces per hour, with options from semi-automatic single-station to full-automatic multi-station lines. It fits e-commerce matching workshops, self-owned shoe factories and third-party packaging manufacturers.
Stable Performance & User-friendly Operation. Centralized PLC touch control stores and calls production parameters with one click. The quick mold change system minimizes downtime for product switching. The machine frame adopts thick coated carbon steel or stainless steel for long service life.
Multi-purpose with Replaceable Molds. By simply changing molds, this shoe tray forming machine can also manufacture wine pulp trays, cosmetic inner liners, electronic product buffer packaging and small household appliance holders, maximizing equipment utilization.
Upgrade Brand Image. Custom degradable pulp trays replace cheap foam fillers, showing brands’ sustainable development concepts and increasing cooperation willingness of overseas buyers.
Space-saving Layout. Optimized frame design reduces floor occupation compared with traditional pulp molding machines, enabling complete line layout in medium and small workshops.
Pulp Shoe Tray Types
Shoe support inserts: Fix shoe shapes to prevent extrusion deformation during storage.
Pair shoe bottom trays: Buffer packaging for whole shoe pairs.
Shoe box inner padding: Fill box gaps and protect shoe uppers.
Custom logo embossed trays: Exclusive packaging with brand textures.

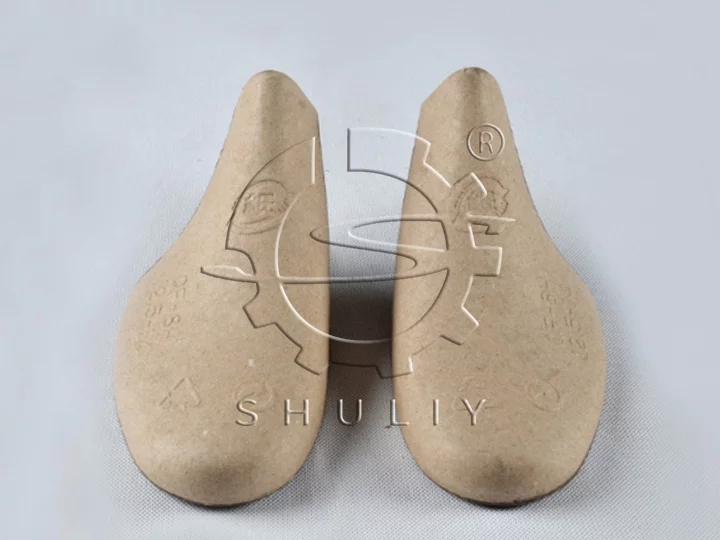

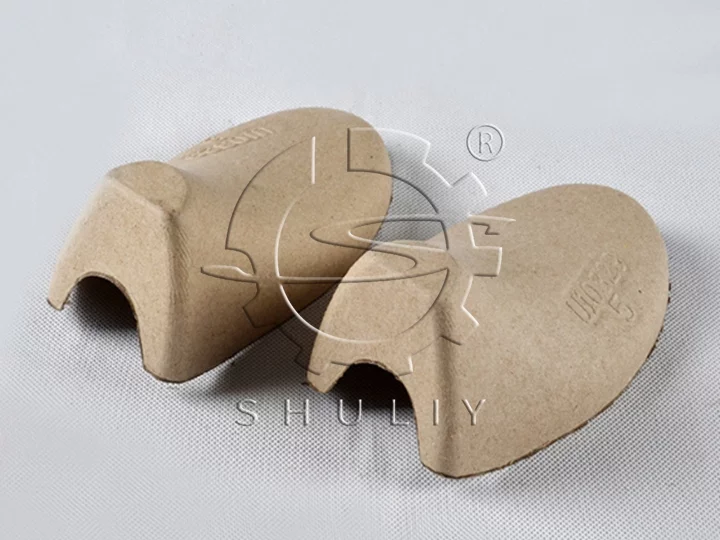

shoe trayshoesshoes tray
Target Customers Suitable for Shoe Tray Forming Machine
Large-scale shoe factories planning self-production of eco-packaging to cut outsourcing costs.
Brands transforming sustainable packaging and phasing out plastic/foam fillers.
Footwear exporters subject to strict international environmental packaging regulations.
Professional packaging processing factories expanding pulp molding business lines.
Enterprises expecting independent packaging quality control and shorter outsourcing lead times.
Customization & After-sales Service
Machine Customization: Add or remove drying devices, forming stations and automatic loading/unloading mechanisms as required.
Mold Service: One-to-one mold development according to customer shoe samples, with logo engraving available.
On-site Support: Professional engineers arrange factory assembly, equipment commissioning and free operator training after delivery.
After-sales Warranty: 12-month full machine warranty, long-term supply of original spare parts and remote real-time fault troubleshooting guidance.

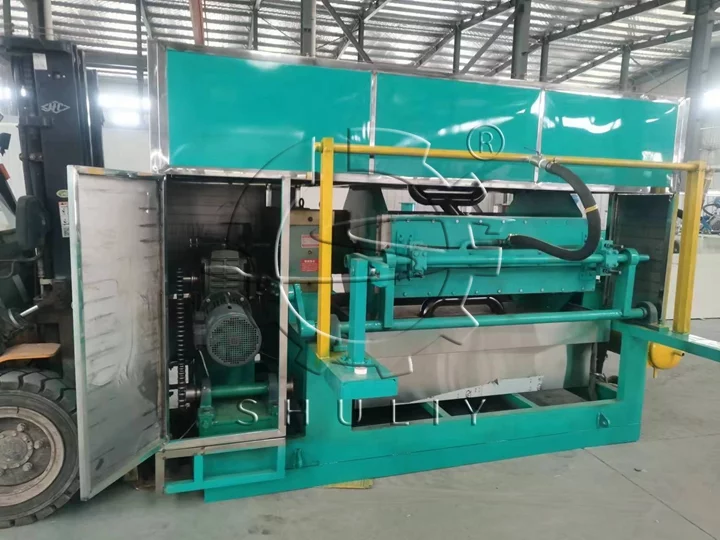

shoe tray production line
Conclusion
To sum up, our shoe tray forming machine features flexible production capacity, stable operation, low comprehensive consumption and strong customizability, perfectly helping footwear manufacturers and packaging suppliers replace traditional plastic and foam packaging with eco-friendly, fully biodegradable pulp shoe trays.
Beyond standard shoe tray production solutions, we also provide professional special-shaped pulp tray forming machinescapable of producing various irregular pulp trays.
If you are looking for cost-effective, high-stability pulp molding equipment or need customized machine and mold solutions, feel free to contact us for detailed parameters, factory cases and the latest quotation. We sincerely look forward to establishing long-term win-win cooperation with you.
